KCO-FDP-16M Fiber Optic Terminal Box Splice Junction Box 16 Port 1X16 LGX Splitter

  • 1
  • 2
  • 3

Brand Name : KCO, Kocent Optec Limited

Model Number : KCO-FDP-16M

Certification : ISO9001

Place of Origin : Guangdong, China

MOQ : Negotiation

Price : Negotiation

Payment Terms : Western Union,T/T,L/C

Supply Ability : 20,000 pcs/ month

Delivery Time : 7~14 days after get payment

Packaging Details : carton box, wooden pallet

Part number : KCO-FDP-16M

Material : ABS+PC

Color : White/ Black/ Customized

Connector : SC, ST, LC, FC, E2000, etc

Application : outdoor

Capacity : 16 fibers fo

Contact Now

KCO-FDP-16M Fiber Optic Terminal Box Splice Junction Box 16 Port 1X16 LGX Splitter

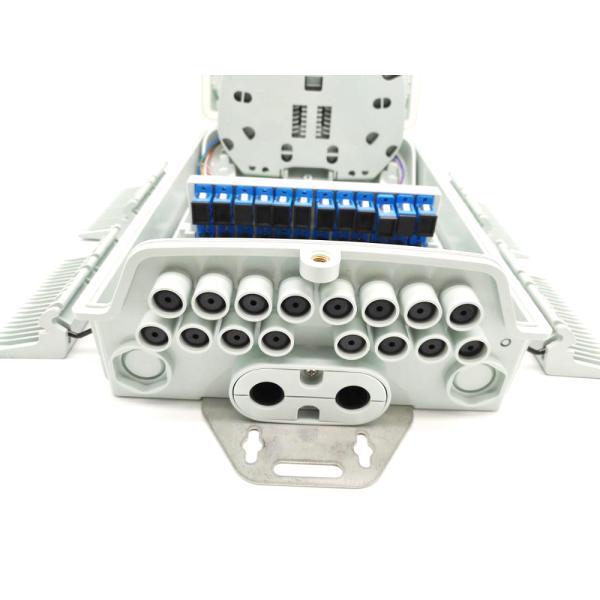

KCO-FDP-16M Optical Fiber Access Terminal Box Splice Junction Box 16 Port 1*16 LGX Splitter is a rugged FTTH drop cable fiber optic splice & splitter closure designed to withstand harsh environmental conditions including moisture, vibration, and extreme temperatures.
Installation Options
Wall Mount
Pole Mount
Product Specifications
Goods Name Optical Fiber Access Terminal Distribution Box
Item Number KCO-FDB-16M
Adapter Ports 16 ports of SC adapter
Dimensions L: 340mm, W: 220mm, H: 95mm
Maximum Capacity Splice 96 Fibers (4 trays, 24 fibers/tray)
Weight 1.80kg
Cable Input Port Max. 2 ports (2*3 mm or indoor cable)
Cable Output Capacity Max. 16 ports (outdoor figure-8 FTTH self-supporting drop cable)
Protection Level IP65
Atmospheric Pressure 70KPa~106 KPa
Operation Temperature -40°C to +85°C
Insertion Loss ≤0.2dB
UPC Return Loss ≥60 dB
APC Return Loss >1000 times
Product Features
  • ABS+PC high quality material, wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP67
  • Cable, pigtails, patch cords run through separate paths without interference
  • Cassette type SC adaptor installation for easy maintenance
  • Distribution panel flips up for easy feeder cable placement and maintenance
  • Suitable for both indoor and outdoor use with wall or pole mounting
  • 2 cable input ports and 16 FTTH drop cable output ports
  • Compatible with SC, FC, ST, LC, E2000 adapters
  • Mechanical sealing structure with mid-span cable entry
Applications
  • FTTH access network
  • Fiber to the home
  • Fiber to the antenna
  • Telecommunication Networks
  • CATV Networks
  • Data communications Networks
  • Local Area Networks
Ordering Information
Item Capacity Splitter Connector Adapter Logo
KCO-FDB-16M 16 cores 1*2 SC/UPC SC/UPC KCO
customized
...
16 cores 1*4 SC/APC SC/APC
16 cores 1*6 FC/UPC FC/UPC
16 cores 1*8 FC/APC FC/APC
16 cores 1*12 ST/UPC ST/UPC
16 cores 1*16 LC/UPC LC/UPC
16 cores 1*24 LC/APC LC/APC
Product Images
KCO-FDP-16M Fiber Optic Terminal Box Splice Junction Box 16 Port 1X16 LGX Splitter KCO-FDP-16M Fiber Optic Terminal Box Splice Junction Box 16 Port 1X16 LGX Splitter KCO-FDP-16M Fiber Optic Terminal Box Splice Junction Box 16 Port 1X16 LGX Splitter KCO-FDP-16M Fiber Optic Terminal Box Splice Junction Box 16 Port 1X16 LGX Splitter
OEM/ODM Services
We offer custom branding services for your logo on cables, packaging, labels, or any visible surface. Our OEM and ODM services are available to meet your specific requirements.
Packaging
Standard export packaging includes carton boxes, wooden boxes, and wooden pallets.
